Description
- Compact design with a depth of 140mm for easy integration
- High efficiency with 80 PLUS Platinum certification

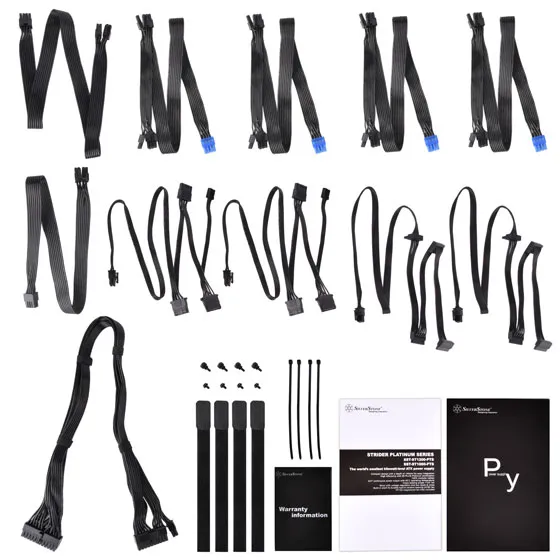

- 100% modular cables
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Built-in silent & durable HYB fan
- FF122 magnetized fan filter included
- Japanese electrolytic capacitors
Specifications:-
| Model No. | SST-ST1000-PTS |
| Max. DC Output | 1000W |
| Power density | 554W per liter |
| Color | Black（Lead-Free Paint） |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 996W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89%~92% at 20%~100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection Over current protection Over voltage protection Over Temperature protection Under voltage protection Short circuit protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector（”600mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”） 8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4） 8 x SATA connector（”600mm /150mm / 150mm / 150mm” X2） 6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2） 2 x 4-Pin Floppy connector（”150mm” X2） |
| Cooling System | Single 120mm HYB fan |
| Form factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91″ (W) x 3.39″ (H) x 5.51″ (D) |
| Weight | 1.98kg |
| Certification | 80 PLUS Platinum |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
- Wattage:1000 Watt
- Certification :80+ PLATINUM
- Modular:FULLY MODULAR
- PCIe Connector : (6+2)8
- SATA Connector:8
- Peripheral : (4-Pin)6
